How Much Does a Smith Machine Bar Weigh?

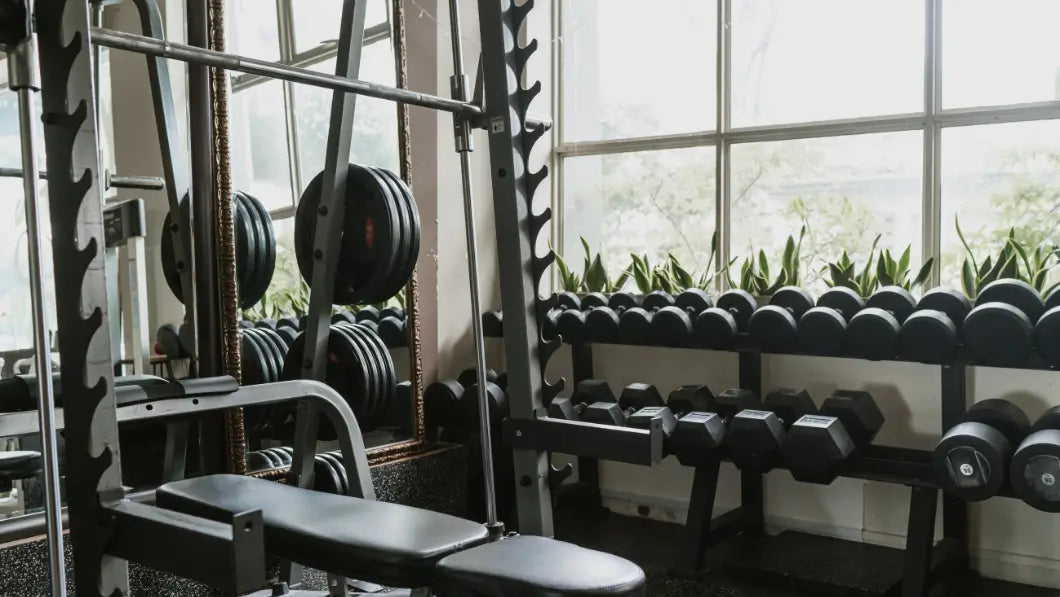

Smith machine bar on guide rails in a gym

Short answer: there's no standard. A Smith machine bar usually weighs somewhere between about 3kg and 20kg (7–44lb), and on most machines it's lighter than the 20kg Olympic bar you'd use on a squat rack. Counterbalanced machines sit at the bottom of that range; machines without a counterbalance sit higher. If your machine has the bar weight on a sticker or in the manual, use that figure. If it doesn't, you can measure it in a couple of minutes (see below).

Machine type What you're lifting with the empty bar Where you'll find it
Counterbalanced Roughly 3–9kg (7–20lb) Most commercial gyms; the bar is linked by cables to a weight stack behind the frame
Not counterbalanced Roughly 9–20kg (20–44lb) Most home and budget Smith machines, older commercial machines
For comparison: Olympic barbell 20kg (44lb) men's, 15kg (33lb) women's Free-weight racks

These are typical ranges, not rules. Two machines that look the same can differ by several kilos, so treat any single number you read online (including ours) as a starting point until you've checked your own machine.

Is a Smith machine bar 20kg?

Usually not. Some heavy-duty machines without a counterbalance do have bars close to 20kg, but most are lighter, and a counterbalanced bar can feel like only a few kilos. If you've been counting the Smith bar as 20kg in your training log, your totals are probably a little high.

Why the "bar weight" and what you feel can be different

On a counterbalanced machine the bar itself might weigh 15kg or more, but cables and a counterweight hold some of it up, so the starting resistance (what you actually push) is much less. That starting resistance is the number to log, and it's the one manufacturers usually print on the machine.

Two other things are often blamed but make little difference:

  • Angled rails. Many Smith machines have rails tilted about 7–12°. That reduces the effective weight by only around 1–2%, so a 15kg bar on angled rails still behaves like roughly 15kg.
  • Friction. Bearings and bushings add a little resistance on the way up and take a little away on the way down. On a well-maintained machine it's small; on a dry, worn one you'll notice it.

How to find out what your Smith bar weighs

  1. Look for a sticker or plate on the frame or the uprights. Commercial machines often state "bar weight" or "starting resistance".
  2. Check the manual or spec sheet, or search the brand and model number. Ask the gym staff if the machine isn't labelled.
  3. Measure it with a luggage scale. Unhook the bar at about hip height, hook a digital luggage scale (a cheap hanging one is fine) to the centre of the bar, and lift slowly by the scale until the bar is moving steadily. The reading is roughly what you're lifting. Do it two or three times and take the average. This works on counterbalanced machines too, because it measures the resistance you feel, not the steel.

Write the figure on a piece of tape on the frame. Anyone who trains on that machine will thank you.

Working out your total lift

Add the bar's starting resistance to the plates you've loaded. Three examples:

  • Counterbalanced bar (about 7kg) + 2 × 10kg plates = about 27kg
  • Home Smith bar without counterbalance (say 15kg) + 2 × 10kg plates = 35kg
  • Olympic bar on a squat rack (20kg) + 2 × 10kg plates = 40kg

The same plates can mean a 13kg difference in total load depending on the bar, which is why it's worth logging Smith machine lifts separately from free-weight lifts.

Can you compare Smith machine and free-weight numbers?

Not directly. Even with the bar weight sorted out, the fixed rails take away the balancing work, so most people can move a bit more on a Smith squat or bench than with a free barbell, though how much varies a lot from person to person. There's no reliable conversion figure. Track each separately and expect your free-weight numbers to start lower if you switch.

If you train at home and want free-weight work alongside or instead of a Smith machine, a squat or power rack with safety arms gives you some of the same reassurance. Our squat rack vs power rack guide explains the difference, and you can see what's in stock in our gym racks collection.

How other bars compare

If you're switching between equipment, these guides give the weights for the other bars you're likely to use:

Smith machines take standard 2-inch Olympic plates. You'll find cast iron, tri-grip and bumper plates in our plates, bars and clips collection.

FAQs

How much does a Smith machine bar weigh in kg?

Usually about 3–20kg. Counterbalanced bars are typically 3–9kg of starting resistance; bars without a counterbalance are typically 9–20kg. Check the label on your machine for the exact figure.

How much does a Smith machine bar weigh in pounds?

Roughly 7–44lb. Counterbalanced machines are often around 10–20lb, and non-counterbalanced machines around 20–44lb.

Does the Smith machine bar have weight?

Yes. Even on a counterbalanced machine there's some starting resistance, usually a few kilos. It should always be added to your plates when you log a lift.

Is the Smith machine bar lighter than a normal barbell?

On most machines, yes. A standard men's Olympic bar is 20kg, and most Smith bars weigh less than that, especially counterbalanced ones.

What is the starting weight on a Smith machine?

"Starting weight" or "starting resistance" is what you lift with the empty bar, after any counterbalance. It's the figure printed on most commercial machines and the one to use in your training log.

Do angled rails make the bar lighter?

Only slightly. A typical 7–12° angle takes about 1–2% off the effective weight, which you won't notice.
